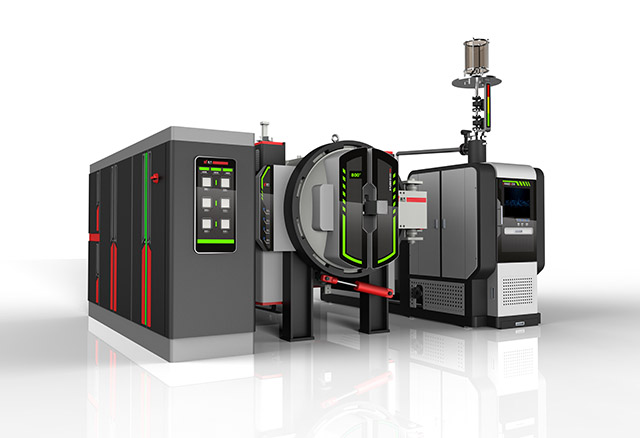

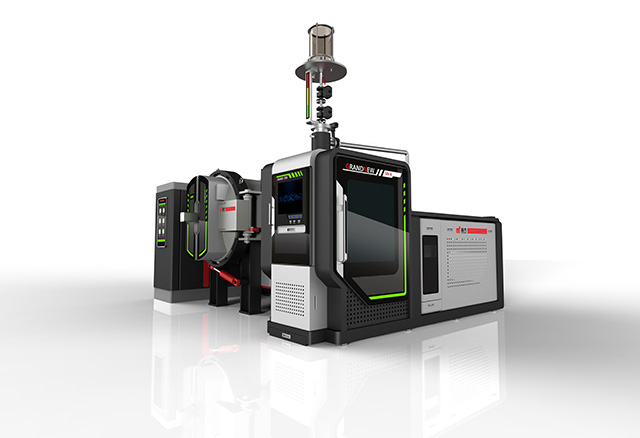

Sinter HIP furnaces with fast cooling are designed to integrate the functions of pressure de-waxing, vacuum de-waxing, vacuum sintering, TORVAC, partial pressure sintering, pressure sintering, atmosphere sintering, fast cooling and etc.
To meet various working process requirements, process gases like Ar, H2, CH4 and N2 could be used to control chamber atmosphere under different pressure and temperature.
Horizontal design for easy loading, unloading and maintenance. Automatic control during whole process.
|
Type |
GN3312F-1 |
|
Dimension of usable space |
300×300×1200mm |
|
Max. loading weight |
500KG |
|
Heating power/ Total power |
270KW/355KW |
|
Max. designing pressure |
1MPa |
|
Max. working pressure |
0.96MPa |
|
Max. designing temperature |
1600℃ |
|
Max. working temperature |
1550℃ |
|
Temperature control |
3 zones |
|
High temperature uniformity |
≤±5℃ |
|
Max. heating up speed (without loading) |
15℃/min（≤1000℃）； |
|
Max. Vacuum |
≤ 2Pa, tested in cold and clean chamber |
|
Leak rate |
≤ 2Pa/h, tested in cold and clean chamber |
|
Wax collecting rate |
≥98﹪ |
|
Fast cooling（with loading） |
1450~150℃：≤ 30min |
